Android Hack: Editing facebook contacts

I am going to write with an assumption that most of you have droids. If you do, I think you should do a system update (available under Settings). After you update your phone, you will see some changes in the droid interface, particularly the android market.

Let us say you try to edit your facebook contact. For instance you want to save this cutie's phone number after you had flirted with her on FB. Sometimes (or most of the times for me) you will see a message indicating that "Facebook contact is not editable". Bummer! Not to worry, there's a hack for this until another system update solves the problem.

Option 1:
Select your FB contact. Click on EDIT from the menu. Now you should see the message saying your contact is not editable because it is an FB contact. Now, click on the MENU again and click ADD CONTACT. Enter the first and last names of your contact again (spelling should match your existing contact). Enter the phone number, then SAVE. Boom! You should see that the phone number is picked up and merged into the existing FB contact.

Option 2 (I highly doubt this will happen):
This happens if option 1 still does not work and now you have duplicates. Select your FB contact. Select MENU, then EDIT CONTACT. Now select the MENU again and choose JOIN. Then select your new contact.

Tada!

Android

For a few months now, I've been reading a little bit about android and playing around with the sdk (downloadable from http://www.android.com/) with Eclipse. Too bad I dont have a G1 phone to test it out, but soon.

So android as some of you might know is the next generation platform for mobile devices. Not all mobile devices in the market support android. HTC, Samsung and Sony have a few G1 phones with T Mobile and Verizon has offcially announced that they are coming up with an android phone soon. It will probably be Motorola's Calgary phone.

A lot of cool applications can be developed using Android and, when I say cool, I mean it. You can control any hardware component of your android phone, including camera, your touch screen, keys, buttons and whatever hardware your phone contains. For instance, lets say you are a vivid reader and you are at a book store and have picked a book you like but would like to check prices for the same book online right there. You can take a picture of the book's barcode using your android phone and an android application can obtain the book's information by searching online stores (you can REALLY write an application that would grab the ISBN code and search popular websites for the book just by controlling your camera). The concept however is called Pattern Recognition I think, if you are geeky and want a name for it.

Alternatively, if you are just a fan of visuals, and if you have a Blackberry, you can create themes which makes your blackberry OS look like android. You would need the theme desginer from Blackberry's website. It is called Plazmic CDK 4.7. You also will need a device emulator for your phone.

Resolve your 127.0.0.1

There are times when you want to do something with the URL, or portions of the URL by parsing it. However, if you are on your local box, you are only going to see the good old 127.0.0.1 AKA "localhost" in your URL. Lets say you want to parse http://msdn/testapplication so as to get only the 'msdn' part of the URL. You wont be able to do it on your local box because IIS would resolve your hostname to localhost.

Here's what you can do to mask a real-time url over your localhost.
From your file explorer, locate the etc folder under:

C:\->Windows->System32->drivers->etc

Here, you can see a file named hosts, of type file. Open it with a word editor program (notepad), and you will see the mappings of IP addresses to host names. You will by default, see an entry for 127.0.0.1 resolved/mapped to localhost. All you need to do is change the name from localhost to whatever name (msdn, in our example). Now, when you type http://msdn/testapplication, you will actually be firing up your local web application. Now, you can do whatever you wish to do with the url since it is not "localhost" anymore, linguistically speaking.

I hope that was a cool trick that comes in handy! Until next time...

Export to Excel

I like inventing something on an as-needed basis, yes. How often does that happen though?! Then I thought how cool it would be if I just innovate or derive from existing technology?

To cut it short, here's the problem:
Lets say you have a scenario where you want to export something right from the database (and from the data layer) to excel and the excel workbook should be downloadable through any of your web interface components. I am not talking about just having a tabular data being exported to Excel but, a workbook with multiple worksheets (which has data from different tables in a dataset), styles, headers, formulas, expressions, content formatting, and much more. Its just a major pain to do all this. Its definitely possible but sometimes its just not worth the time. A simple example would be creating an invoice or orders (where the order information comes from the DL). Plus working with COM objects is not fun as they are not thread safe.

Here's a solution that cost you a bit of cash:
There are applications that would do the export to excel but they cost a few huyndred bucks. Plus they serve only one type. For instance there is a software that lets you create only invoices. You dont get control over "ALL" what you wanted to do here.

Here's mine:
What I tried and had worked pretty good for me was TEMLPATES. I had a template folder attached to my web app and had pre-formatted excel files there. That is, all they need is the data from the database. They will have the formulas, formatting, styles and so on already. So if you lets say drop in 2 rows of numbers from the database to one of these files and want the total in a different cell, the precalculated formula for that cell will automatically drop the total for you. So, you open the appropriate file from the templates folder using FileStream and Workbook Objects. The workbook object is a part of the Microsoft.Interop.Excel namespace. MSDN has a few good resources on how to open an Excel file. So, once you have your template, you can just drop the values from a dataset or datareader to the appropriate cells and then save the file in a different location with a different name for the user to download from. I usually attach a GUID to the filename or an id from the database that uniquely identifies the file. Now, you have a neat excel sheet with values from DB and formatting from a template.Of course, the user doesn't know this and doesn't care. All he needs to know is that he gets a kickass downloadable XLS file from a web page.

Last but not least, you should close the Excel applocation object (as it is thread unsafe) and dispose of any COM resources that you used.

Easy as it sounds, it is easily few hours of work if you are familiar with COM objects and FileStreams. If your computer crashes in the process, do not email me. If it doesn't and you have problems, I'd be glad to help.

Can we have more than one Default Button per page?

It's been a while since I found out some cool and handy tips in ASP.NET 2.0.

So, what's it this time?
My login page has two buttons which takes the user through two different processes: the login process and registration process. Of course, there're textboxes for username-password and an invitation code that the user needs to enter to go through the registration process.

Now, you've probably guessed the scenario. If you type in the user name and password and hit the return key, the login button's event should fire up. However, if you type an invitation code and hit the return key, the register button's event should fire up.

Traditionally, a form has one default button, which usually is the login button in a login page. We specify the default button property in the form tag. This we know already. In this scenario however, we're going to look at two default buttons with an implemetaion-level being VERY EASY!

All we need to do is put the controls that are required to perform a single process inside a ASP panel and specify the default button inside the panel's html tag (which looks something like the sample below):

asp:panel id="pnlLogin" runat="server" defaultbutton="btnLogin"

Behind the scenes (nothing much here but sheer curiosity):
Well, being a developer, and a curious one at coding (just like the rest of my species), I did a VIEW SOURCE on my page to see how the content is rendered.

The Panel as we all know is rendered as a DIV. However, ASP.NET adds some extra attributes to the DIV like:

onkeypress="javascript:return WebForm_FireDefaultButton(event,'btnLogin')

"As a good practice, I usually put all the controls with the same validation-group inside one panel if I wish to use a default button for the page. Also, now I know that I can have more than one default button in a page."

Well, that's it until next time!

Hover Menu inside a gridview

It's been a while since I found myself doing something that's trickey and not available on google the way I wanted.

Problem:
Scenario1
So, what are we talking about here? Lets say We have a gridview and have some command fields inside the grid, like Edit, Delete, NavigatetoURL and so on. It'll look clumsy to have all these commands (linkbuttons or hyperlinks) in seperate columns or even in one column.


Scenario2
Sometimes, we might want some commands to show up based on the row's data. In the page that I was working on, I have to show PRINT, EMAIL, EDIT and PREVIEW buttons for each row in a gridview. Moreover, not all rows have the same buttons. Some rows cannot be editied and some rows cannot be emailed (when there is no email address to email).


Solution:
So, what can we do to have the above two functionalities and at the same time make our gridview look pretty? Well here we are:



The above is a regular gridview that we all might have seen and implemented. It's plain and doesn't implement the command fields as of now. As you know we usually have the last or first column containing command fields like EDIT (UPDATE & CANCEL), DELETE and so on.

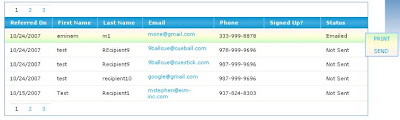

Now, don't get discouraged yet because, our final product will look something like this:

(Ignore the blue vertical column. It is a portion of the page background and will do us no harm). Now notice that the row style changes when you do a mouseover event over it. Also, you get a div popup showing some menu buttons (they're actually databound command fields!). That popup is what this article is about.

Pretty cool eh? This works for row specific command fields (like we discussed earlier) as well. We just have to tweak it.

Behind the scenes:
So, what's happening? Let's start from the markup of the gridview. Since I am assuming that you already have a working knowledge on the gridview and template fields, I am not going to go into details.

--------------------------------------------------------

The template field markup: (click for larger image)
Now this is the template for the last column. That is where we're going to add our div popup. As you can see, I currently have two link buttons inside the div. You can have any number of buttons you want. Also, you can apply styles to it to make it look pretty. I leave that portion to you.

As you can see, I am placing the div tag with all the applicable menu items (as linkbuttons) within the last column's itemtemplate section. Note that I also have set the z-index of the div tag and an absolute positioning. This is vital for the positioning of the div. Since I have the div insite the itemtemplate, I can bind it with a dataitem and even give it a commandname. Sweet!

---------------------------------------

The Client side script to toggle the div's visibility ON and OFF:

// Shows DIV popup commands for gridview
function ShowPopup(lbtn1,lbtn2, panel, grid)
{
var link1 = document.getElementById(lbtn1);
var link2 = document.getElementById(lbtn2);
var pnl = document.getElementById(panel);
var grd = document.getElementById(grid);
pnl.style.display = "block";
//grd.style.backgroundColor="#ffff00";
grd.style.backgroundImage = "url(../images/td_mouseover.gif)";
if(link1 != null)
link1.style.display = "block";
if(link2 != null)
link2.style.display = "block";
//pnl.style.backgroundColor='#99cccc';
pnl.style.backgroundImage = "url(../images/td_mouseover_inverted.gif)";
}
//Hides DIV popup commands for gridview
function HidePopup(lbtn1,lbtn2, panel, grid)
{
var link1 = document.getElementById(lbtn1);
var link2 = document.getElementById(lbtn2);
var pnl = document.getElementById(panel);
var grd = document.getElementById(grid);
grd.style.backgroundImage="url(../images/spacer.gif)";
pnl.style.display = "none";
if(link1 != null)
link1.style.display = "none";
if(link2 != null)
link2.style.display = "none";
}

Understanding this script is very simple. The parameters you saw in the two functions ShowPopup and HidePopup are described below:

• lbtn1: LinkButton1. I just named it this way so that I'l know that it is the first button in our menu. Remember to databind it because you're putting it inside a gridview.

• lbtn2: LinkButton2. The second link button in the div popup. As I mentioned earlier, you can have any number of controls (usually buttons or hyperlinks for our purposes) inside the div. All you then have to do is add the id of that control as a parameter in your javascript functions and set the visibility to 'none' or 'block'.

• panel: I just call the div layer as panel becuase, essentially they're the same. You have to toggle visibility for the div (or the panel as I call it here) on and off first before you toggle the visibility of the menu items inside it (the linkbuttons and/or any other controls that you might have).


Customizing the menu items inside the div popup:
If you see the image of the new gridview, it will show you options to PRINT and EMAIL. You can set the visibility of these items ON or OFF on the row's mouseover event. That you already know. Now, the interesting part is, you can display row-specfic command fields based on a value from the row. That means, you can display only the PRINT button for certain rows, and EMAIL button for certain rows. Of course you can have permutations and combinations for this. How do we go about doig that?

Well, here is the Row Data Bound event for the gridview. As we know, this event fires up when a gridview row is data-bound. So, this is probably the best place to set row specific scripts and conditions.

protected void gvwMyReferrals_RowDataBound(object sender, GridViewRowEventArgs e)
{
// Implement below logic if needed
// Get Status and show toggle linkbutton visibility
if (e.Row.RowType == DataControlRowType.DataRow)
{
LinkButton lbtnGrdPrint = (LinkButton)e.Row.Cells[6].FindControl("lbtnGrdPrint");
LinkButton lbtnGrdEmail = (LinkButton)e.Row.Cells[6].FindControl("lbtnGrdEmail");
HtmlGenericControl panel = (HtmlGenericControl)e.Row.Cells[6].FindControl("gvwMyReferralsDiv");
string showPopup = "ShowPopup('" + lbtnGrdPrint.ClientID + "','" + lbtnGrdEmail.ClientID + "','" + panel.ClientID + "','"+e.Row.ClientID+"')";
string hidePopup = "HidePopup('" + lbtnGrdPrint.ClientID + "','" + lbtnGrdEmail.ClientID + "','" + panel.ClientID + "','" + e.Row.ClientID + "')";
e.Row.Attributes.Add("onmouseover", "javascript:"+showPopup);
e.Row.Attributes.Add("onmouseout", "javascript:" +hidePopup);
}
}

I first check to see if the row is a data row (which eliminates pager, header and footer rows). Then, I get the instance of the controls that make up the div popup menus. First I get the instances of the linkbuttons and then I get the instance of the div tag. Notice that I am casting the div as a panel? Well, that is not casting! Since the panel is a div tag, this method works fine and does not throw casting exceptions. If you have more controls inside the div, get instances of those controls and also the instance of the div.

Now that we have instances of the neccasary contols, it is time to call the client script functions but, not just yet. I'll explain what I have not implemented as of yet. Remember me writing that you can have row-specific menu items inside the div? Let's discuss about that a little. In the row data bound, we can get some value from the data source that is bound to a boundfield or template field, and based on that, we can manipulate the visibility of the controls inside the link button. In my example (see the image of the new gridview), I have set the div tag to be a part of the last column with name as STATUS. Now, I can use STATUS's cell data to display the linkbuttons. All I have to do is, within an if statement, check the STATUS's string value and based on any condition, I can set the value of a variable (that I have declared before) to either the client ID of the control(if I want to show it inside the div) or just pass the variable to the script (instead of the client ID). In short, make sure to pass to the javascript the actual client ID of the control you want to show up and a ZERO VALUE instead if you don't want it to show up. So, when I pass the empty string to the script, it ignores that parameter based on this condition:

if(link1 != null) link1.style.display = "none";

This will make sure the script doesn't blow up. Now, when you hover over each row, you can have menu specific items inside your div popup. Since I am also passing e.Row to the script, I can make the whole row's style change on an onmouseover event. That will give the grid a look and feel of a clickable row. Of course you can extend it by adding styles through javascript. Pretty cool eh?

Style's files:
Well what did I miss? Ah, the images! I'll just put the two images that I used to set the background of the row when you mouse your mouse pointer over it.

The above is used to set the style for the gridview row when you do an onmouseover event.

The below image is used by the div as a background. You can change anything you want to fit your needs.

Questions? Sure! Suggestions? Even better! I like to know how this can be enhanced and/or tuned. I can be reached at vimaljonn@gmail.com.

Single Sign-On using ASP.NET

For many, this seems to be a highly complex issue. Well, if you stop thinking hi-tech, you can make it simple and secure (to a certain extent).

Introduction and Assumptions:
Since it is fairly easy to implement the same in the intranet, we'll talk more about the extranet implementation. Let call our main application (the portal) as the Master. All our users have access to the Master (with role based security). However, not all have access to the child applications within Master.

Scenario:
Let us assume a user-- Bob. Bob is an accountant for two different departments( A and B) at his work. He will need to log into the departments' websites to pull sensitive reports. Now, our Master application will let Bob in with his own credential settings. Within that application, he'll see the links to websites for departments A & B. When he clicks on either of those, he's directed to the corresponding department's homepage (not the login page) bypassing the login process.

Behind the Scenes:
We need to setup few tables to do this single sign-on which enabled Bob to bypass the login process from the Master application. I'll explain the table layout and thier functionality below.

tbl_App: This table has the list of child applications to be brought into single sign-on

• AppID
• AppName
• AppURL

tbl_AppUsers: This table has the list of users and the Application ID (from the previous table) that they have access to

• AppID
• UserID

tbl_AppUserKey: This table stores the AppID, UserID, and a GUID (which acts more like a authentication token for our single sign-on)

• AppID
• UserID
• Key

These are the key tables that you'll need. Assuming this is not for beginners, I will bypass other topics like user roles for different applications, securing the keys generated (to be discussed later) and so forth.

The Process:

Master:
Choose a data driven control like gridview or treeview to display the Applications that a user has access to. Use the first two tables for this. After Bob logs in to Master, read his user ID and get the applications (departments A and B) that he has access to.

Now this is important! When Bob clicks on the application link (Department A, in this example), you'll need to generate a unique key (GUID, to keep it simple), and store this GUID along with Bob's User ID and the App ID. Read the App's URL from the tbl_App table. Open a new window (You can do this using client script which I'll post at the end) for the link that Bob has just clicked, and pass the generated key as a query string.

Department A's application:
Get the query string (the GUID) and read the corresponding User ID from the tbl_AppUserKey table. Now that you have the User ID for Bob, it's not a good idea to keep the GUID in the table. So, delete it! duh!

In this way, even if Bob closes the browser (instead of logging out), and tries to come back (by entering the URL from his browser history) you can redirect him to a error page as the query string would be null. As I said earlier, I assume you already know about maintaining roles and synchronizing the Master and Child applications.

ClientScript for Opening a new Browser Window:

//Open a window to the app and pass Token as query string - works only on postbacks
string script = "window.open('" + url + "?token=" + key + "')";
ClientScriptManager cm = Page.ClientScript;
cm.RegisterStartupScript(this.GetType(), "window", script, true);

Any questions? shoot me an email at vimaljonn@yahoo.com
